柔性电子纸显示屏既有传统PI衬底的TFT基板的柔性电子纸显示屏，也有新型OTFT基板的柔性电子纸显示屏，具备可弯折、轻薄耐撞击、刷 新速度快、静态功耗低的特点，适用于智能穿戴及智能家居等多种应用场景。
Flexible

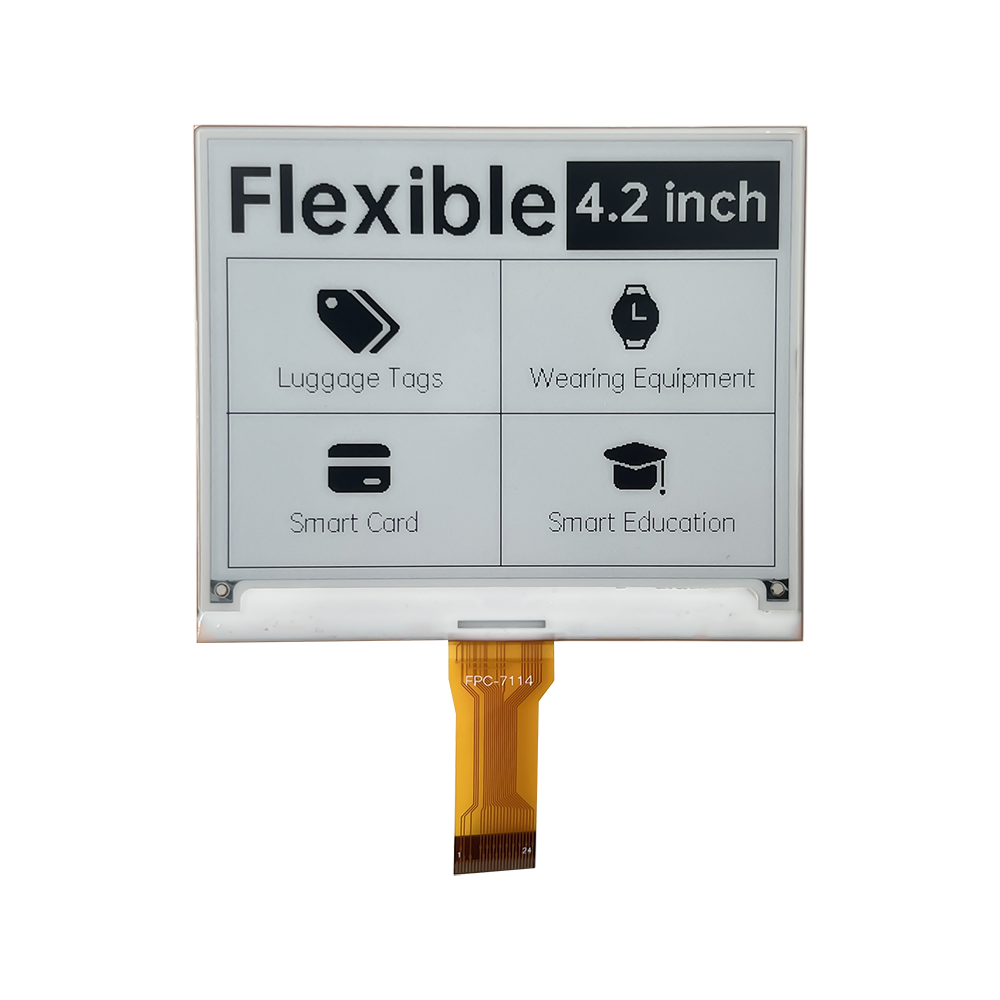

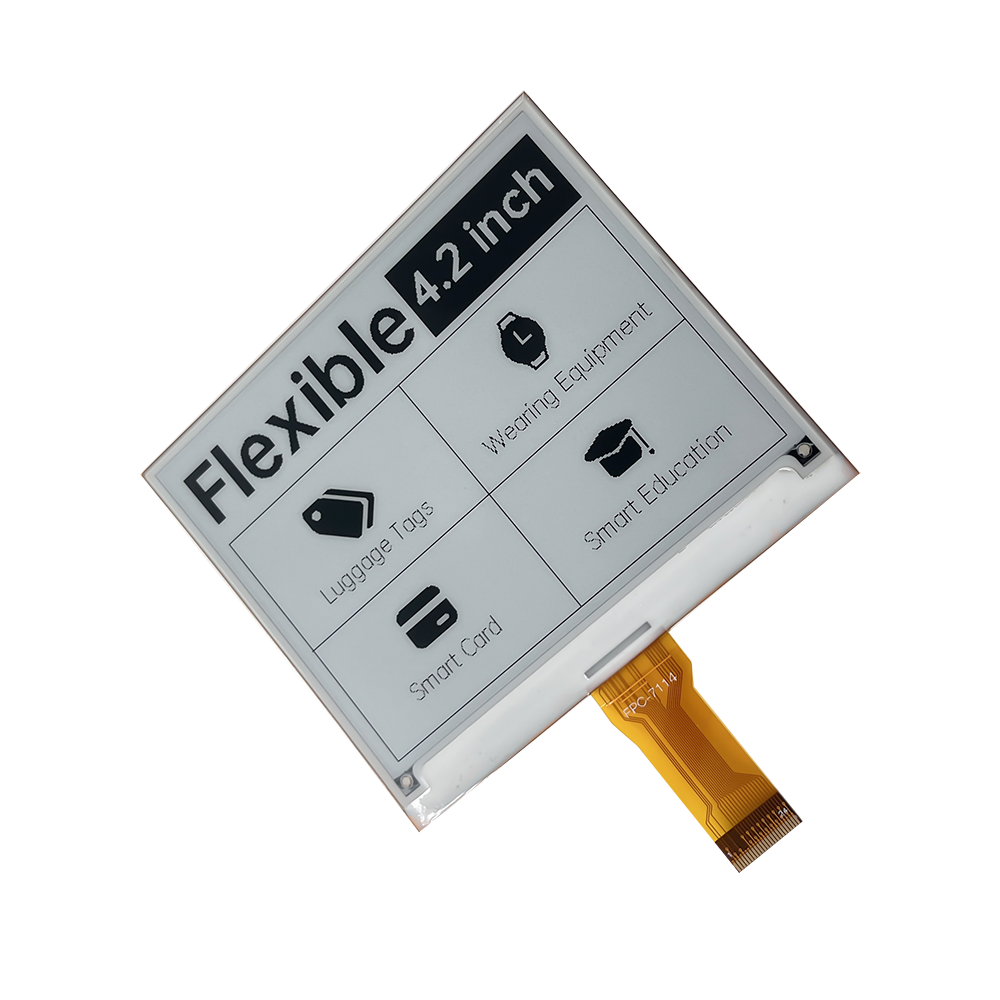

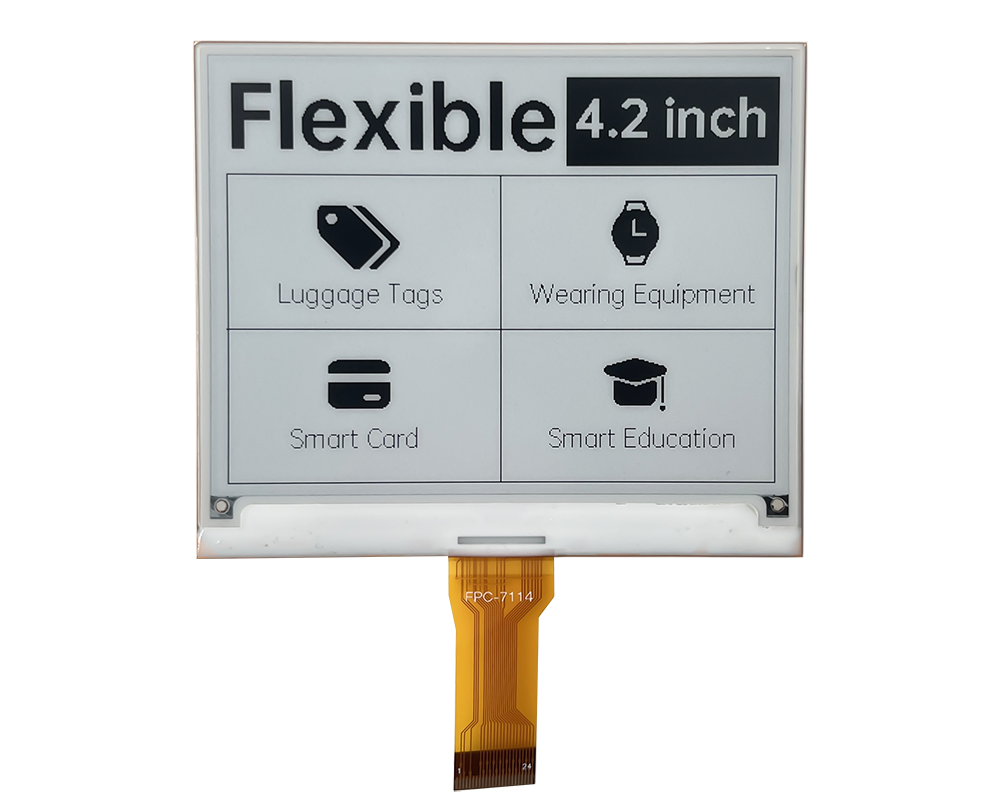

4.2 Inch Flexible E-paper Display
Size4.2 inch

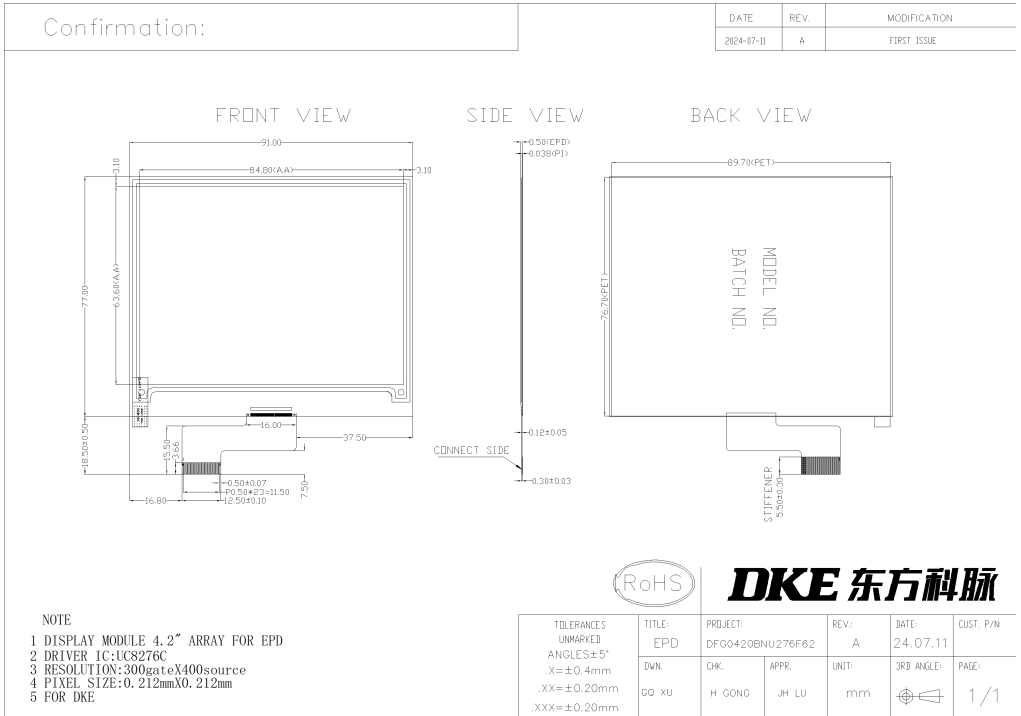

Outline Size(mm)91 (H)×77 (V) ×0.5(D)
ColorBlack/White
View Area(mm)51.84(H)×86.40(V)
DPI120
Resolution(px)400(H)×300(V)
Interface SPI
Pixel (mm)0.212×0.212
Voltage3.0V
Driver ICUC8276
Temperature0-50℃
SubstrateTFT
Weight(g)/
◆300×400 pixels display ◆High contrast High reflectance ◆Built-in temperature sensor
◆Ultra wide viewing angle Ultra low power consumption
◆Pure reflective mode ◆Bi-stable display ◆Commercial temperature range
◆Landscape portrait modes ◆Hard-coat antiglare display surface
◆Ultra Low current deep sleep mode ◆On chip display RAM
◆Waveform can stored in On-chip OTP or written by MCU
◆Serial peripheral interface available ◆On-chip oscillator
◆On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
◆I²C signal master interface to read external temperature sensor
DKE Holding Company Limited
DKE was founded in 2005 and has dedicated continuously and diligently for over a decade to the E-paper market. Now we are a professional manufacturer and service provider of E-paper display technology products integrating R&D, design, production, and sales of many E-paper display modules. Now DKE is also one of the core enterprises of the global E-paper industry. DKE boasts four manufacturing bases in Jiaxing City, Zhejiang Province， Dalian City, Liaoning Province, and Vietnam， with a total number of employees of over one thousand.
How e-paper works
| E-paper Series | Color |
| Black&White | Black,White |
| Tri-Color | Black, White, Red, |
| Four-Color | Black, White, Red, Yellow |
| N-Color | Black, White, Red, Yellow, Blue, Green, Orange |
| Flexible | Bendable, Thin and Robust |
| Segment | Customization Supported |
