柔性电子纸显示屏既有传统PI衬底的TFT基板的柔性电子纸显示屏,也有新型OTFT基板的柔性电子纸显示屏,具备可弯折、轻薄耐撞击、刷 新速度快、静态功耗低的特点,适用于智能穿戴及智能家居等多种应用场景。

Product
Flexible

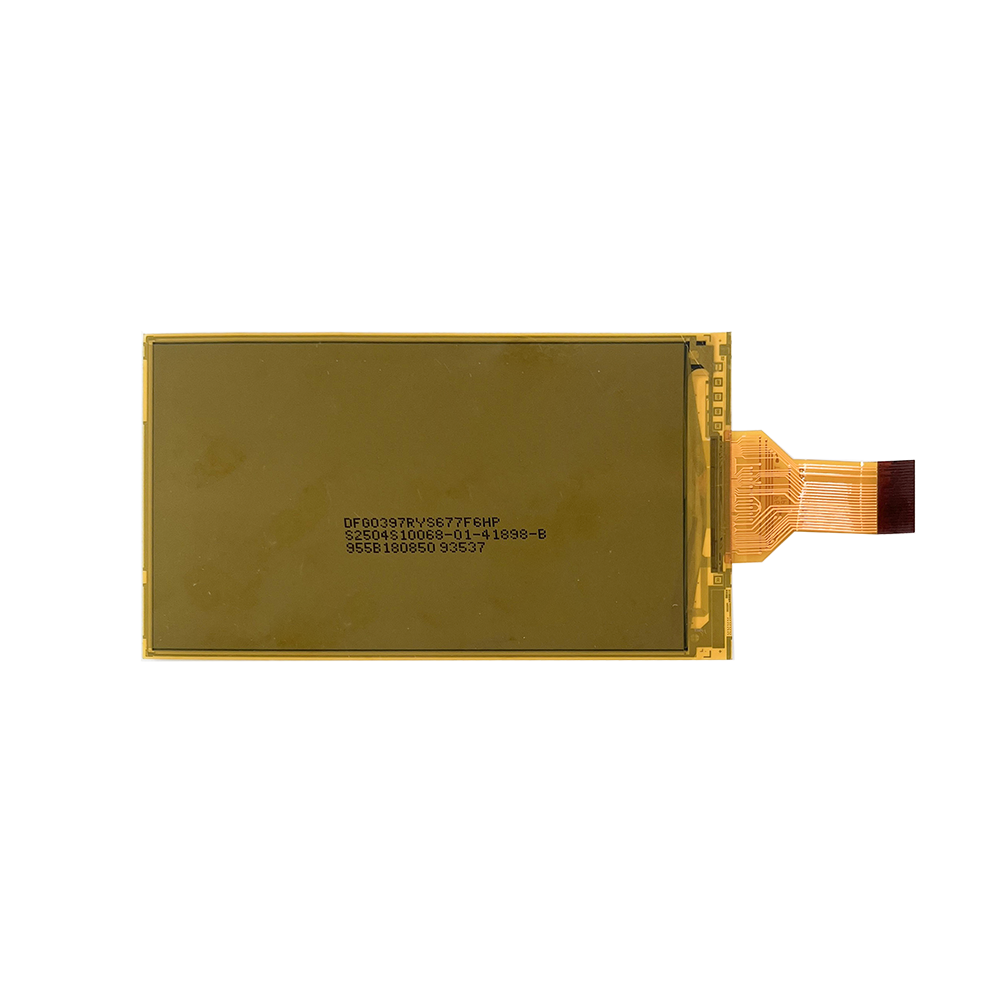

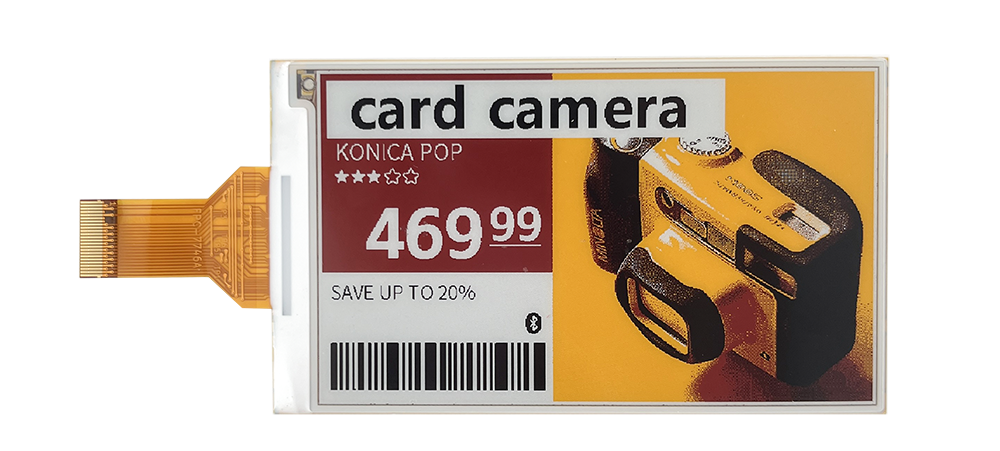

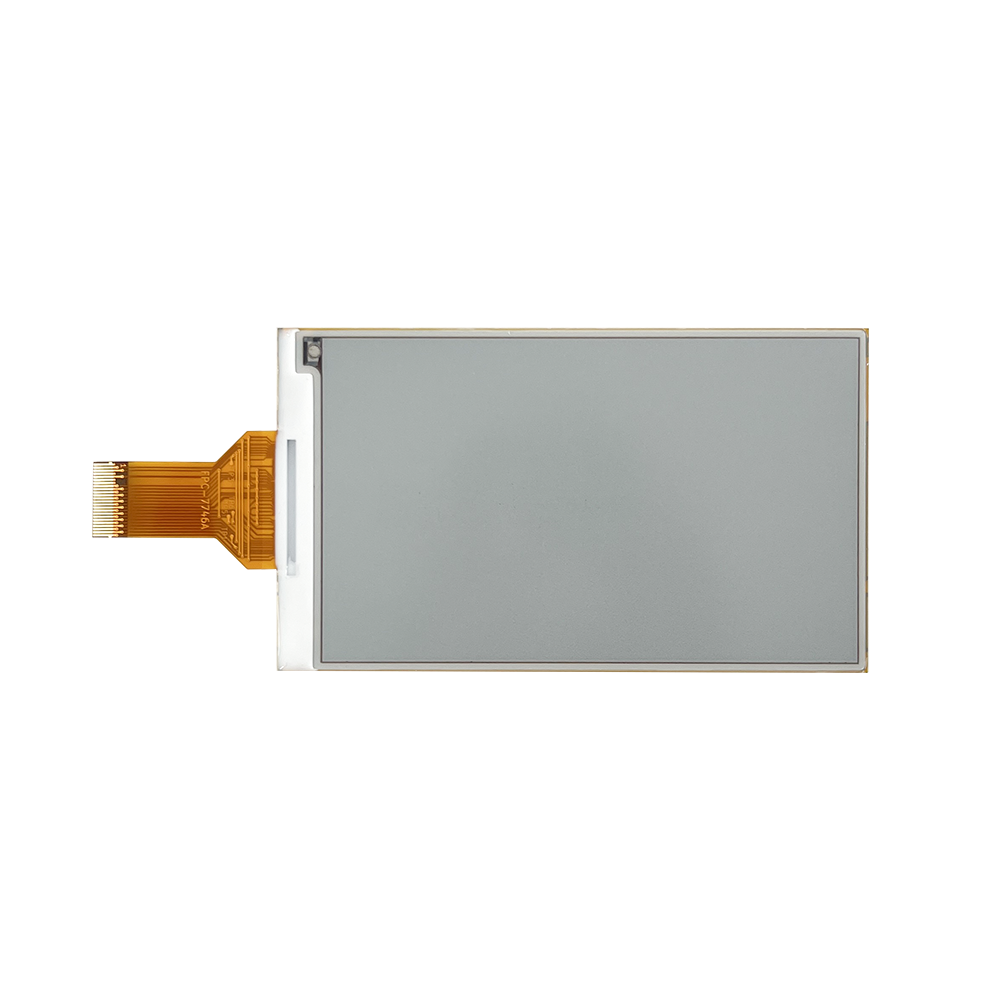

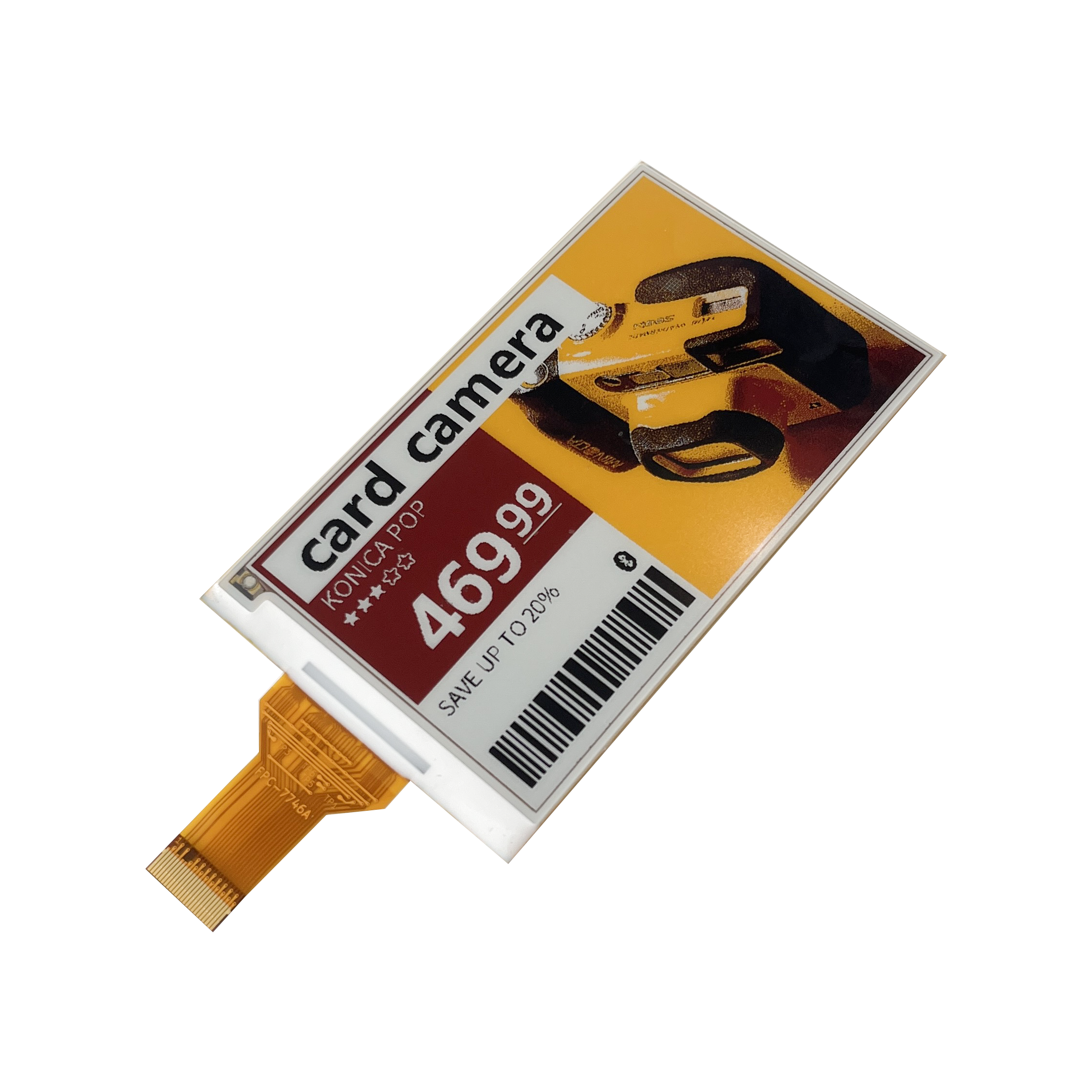

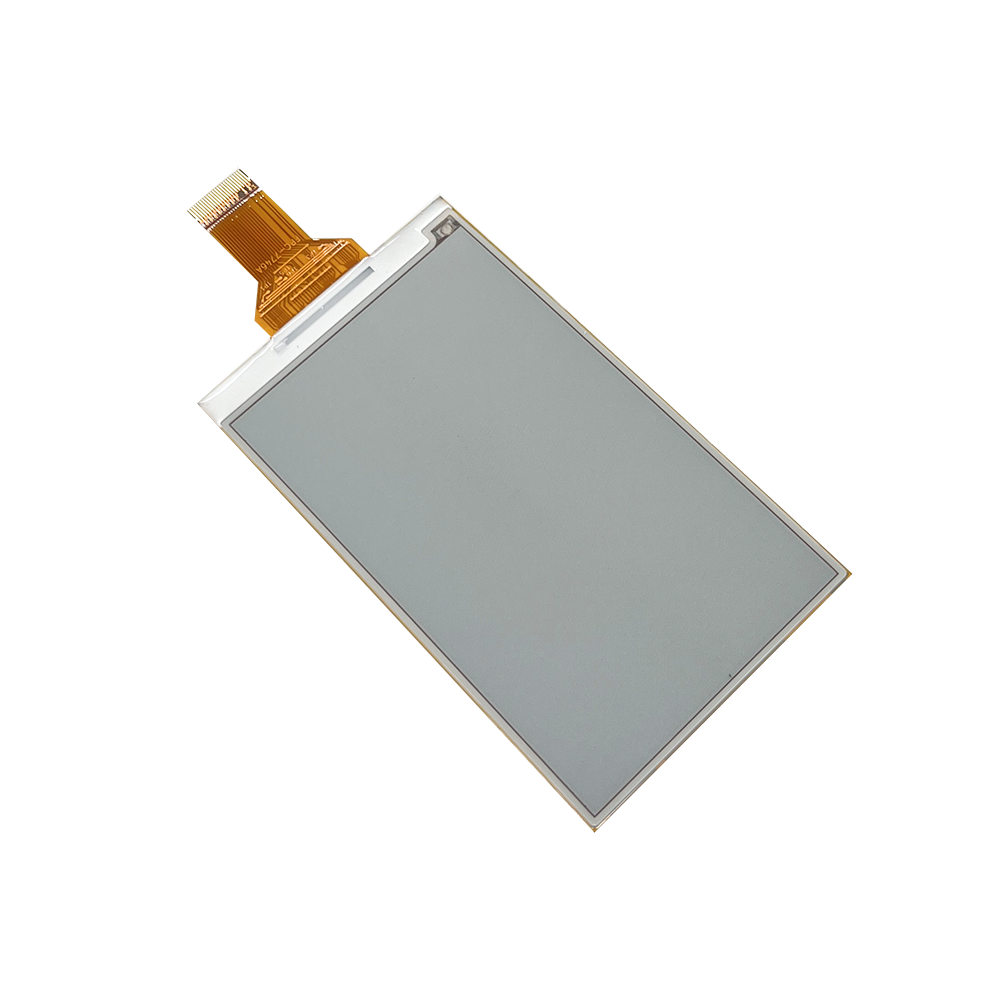

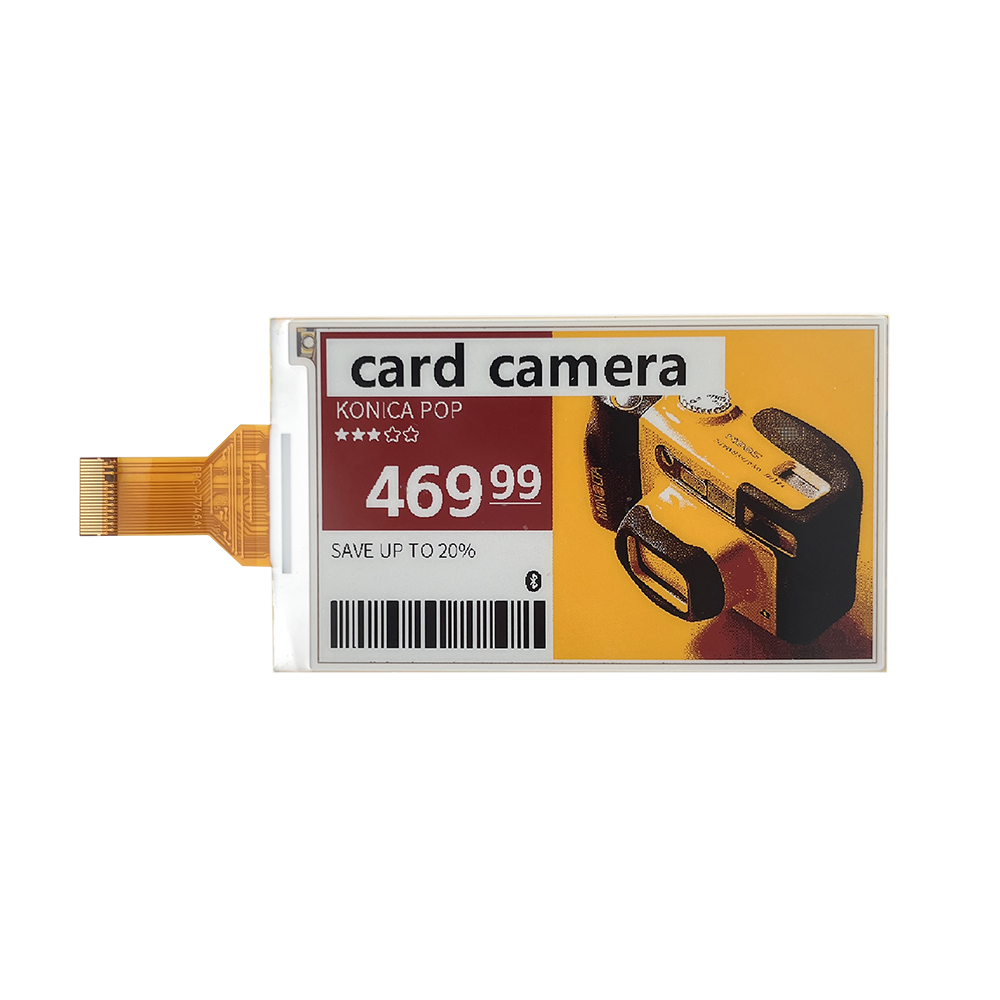

3.97 Inch Flexible E-paper Display
Size3.97 inch

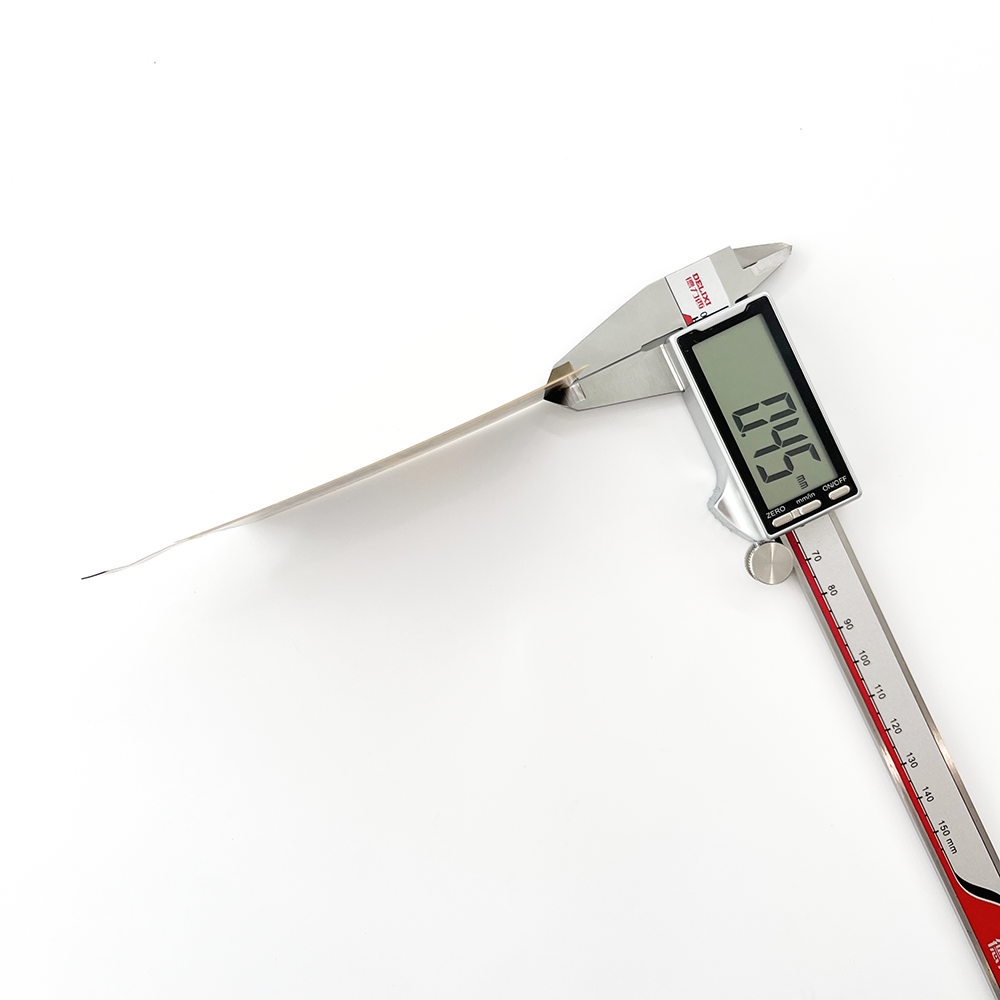

Outline Size(mm)56.24(H)×96.62 (V)×0.5(D)
ColorBlack/White/Red/Yellow
View Area(mm)51.84(H)×86.40(V)
DPI235
Resolution(px)480(H)×800(V)
Interface SPI
Pixel (mm) 0.108×0.108
Voltage3.0V
Driver ICSSD2677
Temperature0-40℃
SubstrateTFT
Weight(g)/





null

◆480×800pixels display     ◆High contrast High reflectance       ◆Pure reflective mode

◆Ultra wide viewing angle Ultra low power consumption        ◆Bi-stable display

◆Commercial temperature range    ◆Landscape portrait modes ◆Support partial update mode

◆Hard-coat antiglare display surface              ◆Ultra Low current deep sleep mode

◆On chip display RAM ◆Waveform can stored in On-chip OTP or written by MCU

◆Serial peripheral interface available     ◆On-chip oscillator    ◆Built-in temperature sensor

◆On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage











null



DKE Holding Company Limited

DKE was founded in 2005 and has dedicated continuously and diligently for over a decade to the E-paper market.   Now we are a professional manufacturer and service provider of E-paper display technology products integrating R&D, design, production, and sales of many E-paper display modules.  Now DKE is also one of the core enterprises of the global E-paper industry.    DKE boasts four manufacturing bases in Jiaxing City, Zhejiang Province, Dalian City, Liaoning Province, and Vietnam, with a total number of employees of over one thousand.








 null





How e-paper works







null


null




E-paper SeriesColor
Black&WhiteBlack,White
Tri-ColorBlack, White, Red,
Four-ColorBlack, White, Red, Yellow
N-ColorBlack, White, Red, Yellow, Blue, Green, Orange
FlexibleBendable, Thin and Robust
SegmentCustomization Supported
